RIO Elite Gold Max
In Stock • Bozeman, MT
- Compact and powerful, the short head and full-size heavy weight carries heavier flies and rigs with ease
- Short rear taper for easier shooting on longer distance casts
- Rear-loaded body turns over heavier rigs more smoothly than aggressive, front-loaded designs and makes for easy roll casting and mending of the entire head
- Short front taper for more powerful turnover of heavier flies and indicator rigs
Description
GOLD MAX is built a full line size heavy and stands as RIO’s most powerful all around taper in the GOLD lineup, designed specifically for turning over larger, more demanding rigs. It shines in fisheries where success is not built around long leaders and tiny dry flies, but instead requires weight, control, and the ability to move flies that actually get noticed.
Featuring the shortest head length in the GOLD family, MAX is purpose built to load quickly and efficiently, even with heavier and more unwieldy setups. The compact head design concentrates more mass toward the back of the body, allowing anglers to carry less line in the air while still generating the energy needed to turn over big flies, split shot, and multi fly rigs with confidence.
A shorter front taper works in tandem with the powerful body to roll cast bulky rigs with ease, pick up and reposition line cleanly, and mend effectively at distance. Whether you are fishing from a drift boat, working tight banks, or managing complex currents, GOLD MAX gives you the control to stay connected to your flies throughout the drift. Despite its power, the taper remains refined enough to present larger dry flies with surprising finesse, avoiding the overly aggressive turnover often associated with heavily front loaded lines.
Built on RIO’s Elite platform, GOLD MAX also features a slick, durable coating and low stretch core that enhances sensitivity, improves hook sets, and maintains performance over time. The result is a line that not only casts heavy rigs more effectively, but also fishes better once those rigs hit the water.
For anglers who need to move more weight without sacrificing control or fishability, GOLD MAX offers a rare balance of power, efficiency, and precision across a wide range of real world conditions.
Features
• Full-Size Heavy, Shortest Head in the Gold Class — Compact, powerful build carries heavier flies and rigs with ease.
• Rear-Loaded Body — Turns over heavier rigs more smoothly than aggressive, front-loaded designs.
• Short Rear Taper — Makes shooting line on longer-distance casts easier.
• Short Front Taper — Delivers powerful turnover of heavier flies and indicator rigs.
• ConnectCore Plus — RIO's low-stretch core for sharp take detection and fast, direct hook sets.
• SlickCast Coating — The lowest-friction, most durable finish RIO has measured.
• Welded Loops, Front and Rear — Fast, secure connections to backing and leader.
Rod Pairing
| Rod Action | Pairing | Notes |
|---|---|---|
| Fast Action | Ideal | The short, rear-loaded head and full-size-heavy build are matched to a fast blank's power. |
| Medium-Fast Action | Works Well | Handles the taper fine; loads a touch slower on the biggest rigs. |
| Medium / Slow Action | Not Recommended | The full-size-heavy weight overloads a soft blank fast, especially at short range. |
Size Guide
| Line Weight | Head Length | Total Length | Head Weight | 30' Head Wt | Species / Technique |
|---|---|---|---|---|---|
| WF4 | 36' / 11.0M | 90' / 27.4M | 175gr / 11.3g | 140gr / 9.1g | Small water, big dry flies, light indicator |
| WF5 | 37' / 11.3M | 90' / 27.4M | 205gr / 13.3g | 160gr / 10.4g | All-around trout, indicator rigs, light streamers |
| WF6 | 38' / 11.6M | 90' / 27.4M | 240gr / 15.6g | 185gr / 12.0g | Heavy nymph rigs, streamers, bigger water |
| WF7 | 39' / 11.9M | 100' / 30.5M | 280gr / 18.1g | 210gr / 13.6g | Big streamers, bass, carp |
| WF8 | 40' / 12.2M | 100' / 30.5M | 330gr / 21.4g | 240gr / 15.6g | Bass, light steelhead and salmon, carp |
| WF9 | 41' / 12.5M | 100' / 30.5M | 390gr / 25.3g | 280gr / 18.1g | Steelhead, pike |
FAQ

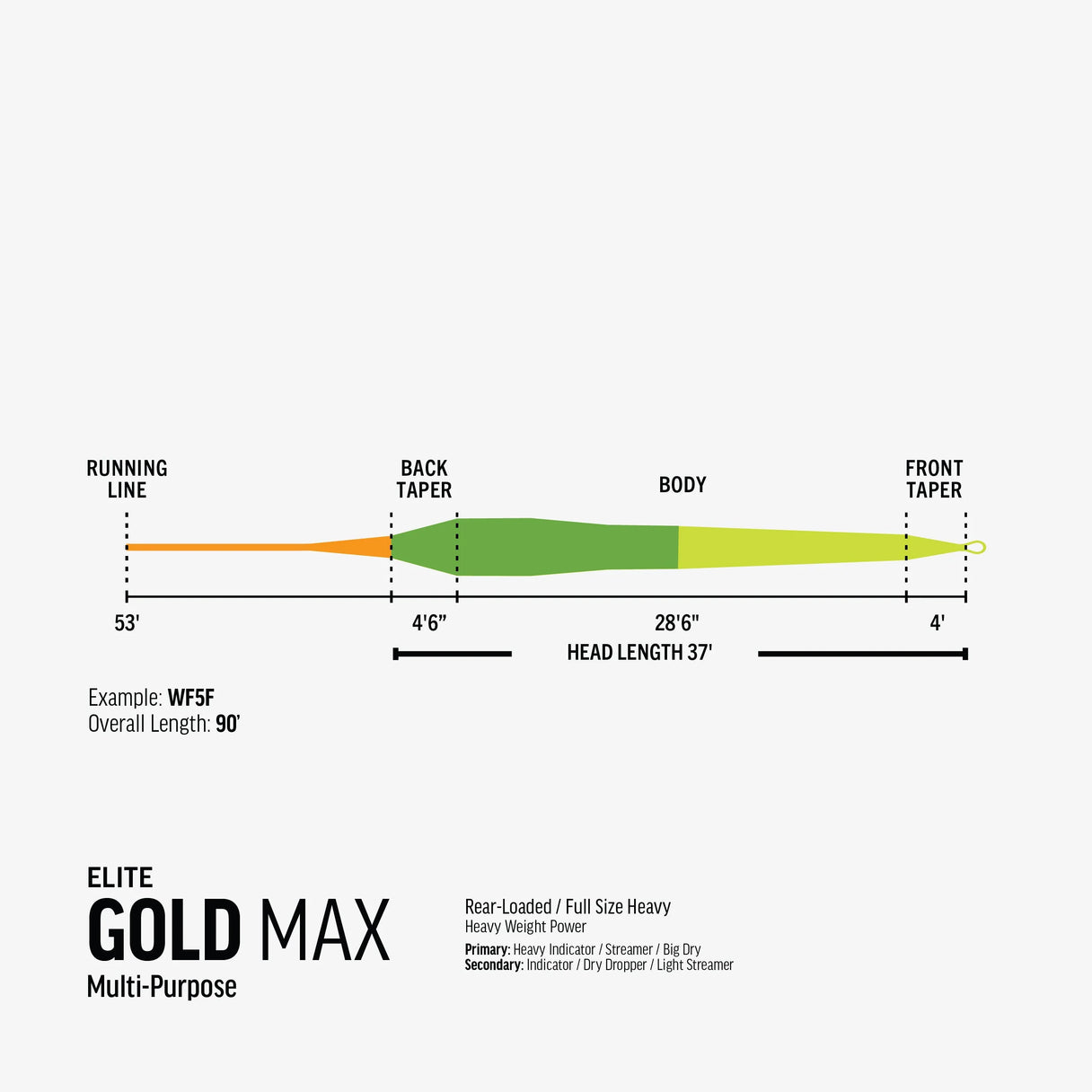

What are the parts of a fly line and what does each section do?
A weight-forward fly line has five sections: Running Line: The thin, level back section that shoots through guides. SlickCast coating keeps friction low for long, easy casts. Rear Taper: A short rear taper -- shorter than Gold XP or Classic Gold -- that makes shooting line on longer casts easier. Belly (Head): The thickest section and the shortest head in the entire Gold lineup, growing from 36 feet on the WF4 to 41 feet on the WF9, built a full line size heavy with weight concentrated toward the rear of the body. Front Taper: A short front taper, built for powerful turnover of heavier flies and indicator rigs rather than delicate presentation. Tip: The final section where the leader connects, finished with a welded loop for a fast, secure connection.
How does Gold MAX compare to Classic RIO Gold and Gold XP?
RIO's expanded Gold Series spans three distinct classes, all sharing the same core DNA but tuned to different payloads: Classic RIO Gold: True-to-weight with a longer 47-foot head and back taper, prioritizing loop stability and delicate delivery at medium-to-long range. Gold XP: Half a size heavy with a mid-length head and medium-long rear taper, RIO's most versatile all-around trout taper. Gold MAX (reviewed here): A full size heavy with the shortest head in the family and a rear-loaded body, purpose-built to smoothly load and turn over the biggest, bulkiest rigs -- heavy indicator setups, big dries, and streamers -- while still roll-casting and mending the entire head with ease. Choose Gold MAX when the flies and rigs get genuinely heavy and unwieldy. Choose Gold XP for a lighter-handling all-arounder, or Classic Gold when finesse and distance mending matter most.
What is ConnectCore Plus and how does it affect hook-ups?
ConnectCore Plus is RIO's low-stretch core technology, built to transmit energy directly from the rod tip to the fly with minimal absorption. On a heavy-rig line like Gold MAX -- often fishing weighted nymphs, indicators, or streamers -- that low-stretch core telegraphs subtle takes and converts a strip-set or hook-set into direct, immediate pressure on the fish rather than energy lost to line stretch.
What is SlickCast and how does it hold up over a season?
SlickCast is RIO's proprietary coating technology, engineered to be the slickest and most durable finish the company has measured -- lab tests show SlickCast lines carry the least friction ever recorded in a fly line. For a line built to carry heavier payloads, that reduced friction matters even more: less resistance through the guides makes it easier to shoot a heavy, air-resistant rig the full distance without the cast running out of steam partway there.
Why does a rear-loaded, full-size-heavy design turn over heavy rigs better than a front-loaded one?
An aggressively front-loaded line concentrates weight at the very tip, which turns over big flies well at short range but can make roll casting, mending, and lifting the whole head off the water clumsy once distance builds. Gold MAX instead carries its extra weight further back in the body -- the shortest head in the Gold class, rear-loaded rather than front-loaded. That shifts more of the casting mass toward the rod hand, so the line loads a fast rod smoothly, roll-casts the entire head cleanly, and mends effortlessly at distance, while the short front taper still delivers enough power to turn over heavy indicator rigs and big dries. The tradeoff is less delicacy than a lighter, front-loaded presentation taper -- Gold MAX is built for power and control with heavy payloads, not finesse.
Product Video
